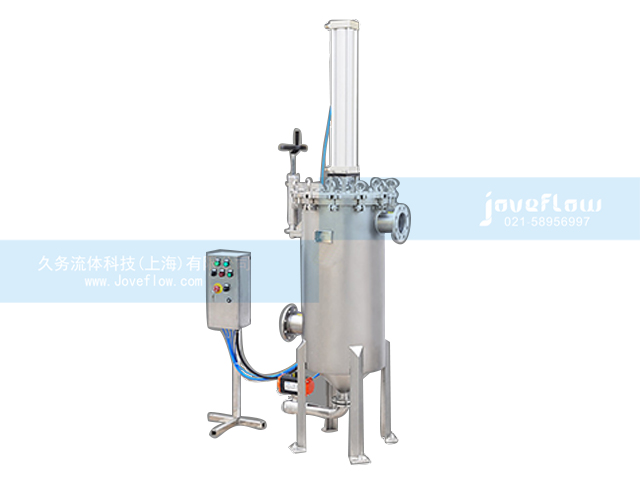

Mechnical Self-cleaning Filter,particle impurities on the internal surface of the filter element are removed automatically by means of efficient mechanical scraping. The scraper is made of PTFE and attached to the screen to remove impurities outside the screen. When impurities are accumulated to a certain degree, the automatic drain valve is opened, and impurities can be discharged through the bottom drain port. Continuous online filtration can be realized with a single filter and particle impurities can be recycled. No filter consumables are required. The filter needs no frequent manual cleaning and is applicable to continuous production with high content of impurities.

Type

MSF-I
Blades or brushes driven by motor, rotating and scraping off dirty from the inner surface of element.

MSF-O
Blades driven by motor, rotating and scraping off dirty from the outer surface of element.

MSF-A
Disc-shape blades driven by cylinder, moving down and up, scraping off dirty from the inner surface of element.

Main Specification

■ Micron Rating: 30-3000μm
■ Maximum Operating Pressure: 1.0MPa/1.6MPa
■ Flow Rate Range：4~354m3/h
■ Maximum Operating Temperature: 200℃
■ Housing Material: SUS316L/SUS304/CS
■ Element Material: SUS316L/SUS304
■ Sealing Material: NBR/FKM/Silicone/PTFE/EPDM
■ Explosion Proof:  Explosive-proof components are used for flammable and explosive operating conditions


Technical Characteristics and Advantages

■ Automatic operation, and PLC-based routine cleaning or cleaning under differential pressure protection to always keep the filter element clean.

■ No disposable filter consumable is needed, reducing the consumable costs and environmental protection costs.

■ The scraper is made of wear-resistant PTFE and has good scraping effects, which greatly improve the capacity to remove impurities and effectively prolong the service life of the filter element.

■ The high-strength filter element with the accurate gap, smooth surface and long service life is applied and scraping can be performed easily.

■ The filtration pressure loss is small, and the flow is stable, thus reducing the energy consumption of pipes and facilitating the process continuity and stability.

■ Sealed filtration can prevent leakage of hazardous materials and facilitate safe production.

■ The discharged waste liquid has a high concentration of impurities and can be recycled to avoid loss of high-value materials.

■ Multiple module combinations and automatic modes can be selected to meet various filtration requirements.

■ The reducer motor or pneumatic component of international famous brand and with high reliability and long service life is applied.

■ The auxiliary cover lifting device is used to facilitate operations.
