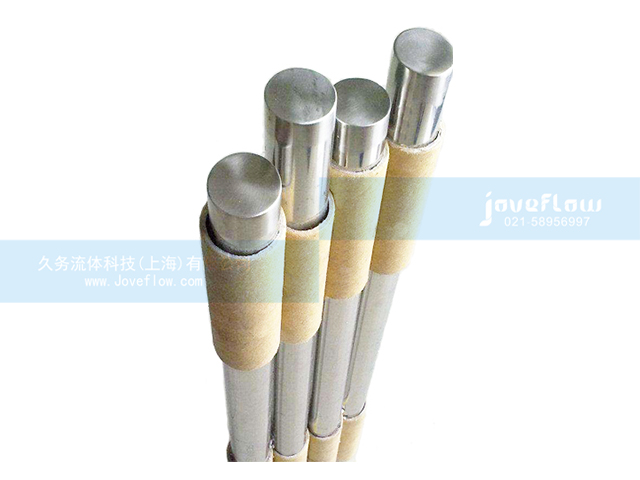

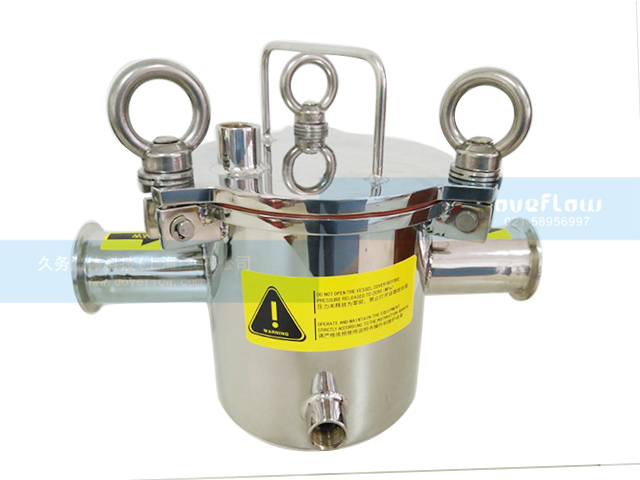

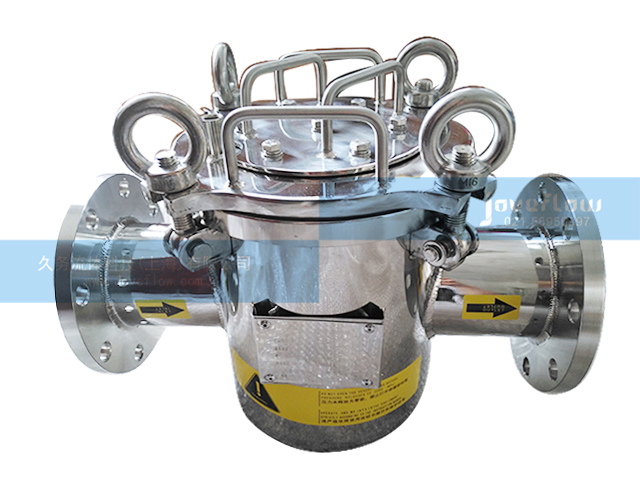

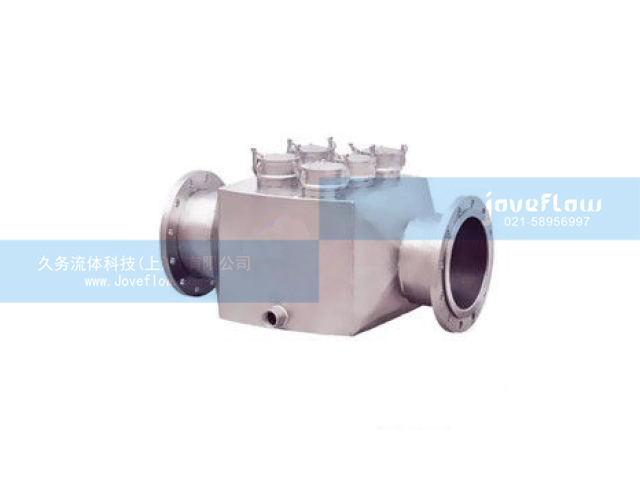

Pipeline Magnetic Separator, are used for removing iron pollutants (such as rust and chippings) and other tiny ferromagnetic impurities to effectively improve the product purity on the production line and protect key parts from being damaged by iron particles. Magnets, magnetic circuits and their layout are optimized by means of three-dimensional finite element analysis. The whole filters are made of stainless steel. Core magnets are NdFeB ultra-strong permanent magnets produced with the latest technology. The surface is of the highest quality in the world, with the peak magnetic field intensity more than 12,000 gauss. Magnets and connectors are continuously welded with stainless steel. Covers can be of quick-opening or clean clamp type.

Pipeline Magnetic Separator are widely applied in the food, metal processing, metal processing, pharmaceutical, chemical, mining, ceramic, paper making and other industries to production problems. The outstanding performance and long service life are recognized at home and abroad. If you have high requirements for the quality and performance, Pipeline Magnetic Separator are the best choice.

Technical Advantages

■ Pulp flows around the high-gradient magnetic field formed by the magnetic array to ensure full contact and multiple captures and improve iron removing effects.

■ Two peak options of magnetic field intensity of the surface: 6,000 gauss and 12,000 gauss

■ Small magnetic attenuation, long service life, and only 1% attenuation after 10-year operation.

■ No energy consumption or moving part, and low operating costs.

■ Special quick-opening cover, easy to operate and maintain.

■ Made of high-quality 304/316L stainless steel with outstanding corrosion resistance.

Main Technical Parameters

■ Diameter: DN25-DN600

■ Peak magnetic field intensity (Gauss):8000- 12,000

■ Applicable temperature (℃): <60, customize high temperature type

■ Casing material: 304, 316L

■ Design pressure (MPa): 0.6, 1.0
