Strainer Filter ST (ST filter for short) is the necessary equipment on the pipeline, as the safe-guard filter, removes large contaminant particles and protect key equipments such as pumps, nozzles, heat exchangers and valves. It can obviously extend the service life of key equipments, improve operational efficiency and avoid the risk of costly system downtime. ST filter also works well as the direct large particle filter. The metal filter basket is reusable by cleaning and cost less filter media consumption. The DR and PO filter baskets especially designed for ST filter are durable and highly reliable.  ST Filter can be installed onto pipelines from 1 to 48 inches. The standard design pressure is 0.6MPa and 1.0MPa. Higher custom-made design pressure is available.

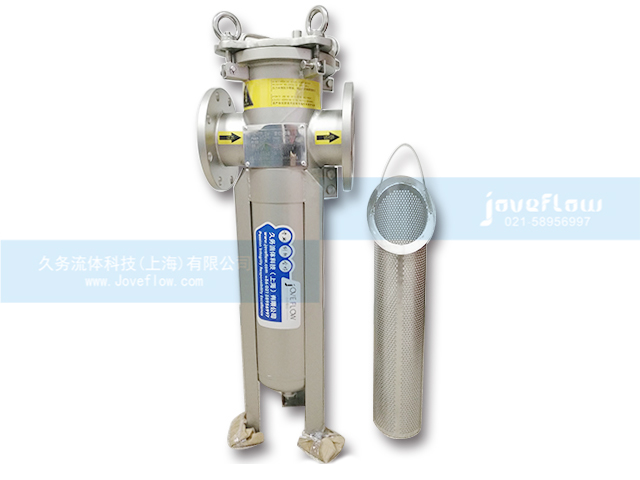

Strainer Filter BST series, support baskets and filter bags are changed into strainer based on bag filters. The common accuracy is 1-8,000um. BST series can be repeatedly used after cleaning, reducing the operating costs. They can be used for filtering large particle impurities and protecting key parts such as pumps, nozzles, heat exchangers and valves to significantly prolong their service life, improve operational benefits and avoid high system downtime risks. Metal composite strainer, perforated strainer and wedge strainer with high durability and reliability can be applied in BST filters.

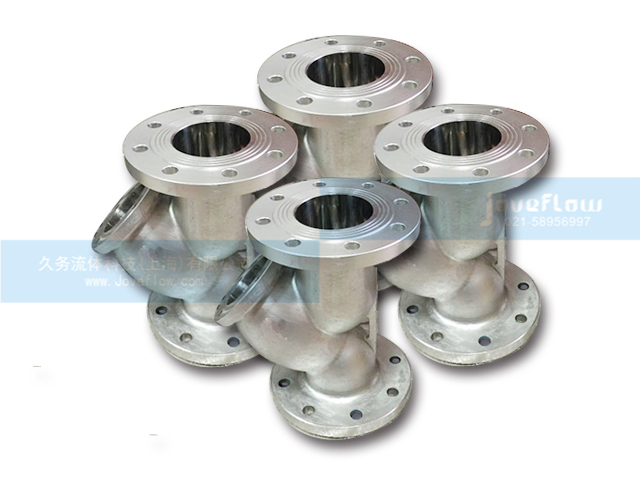

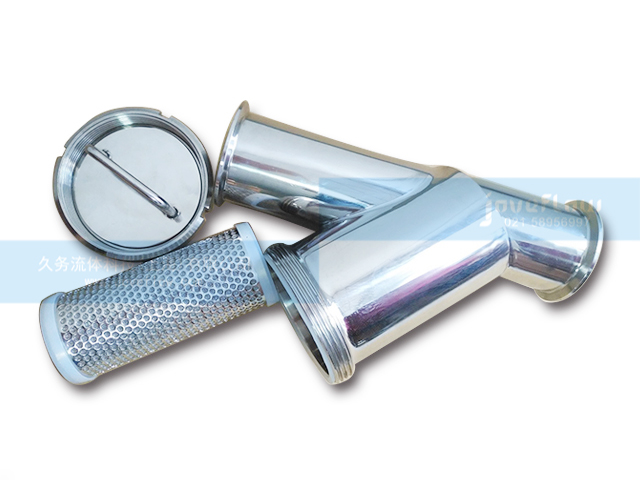

Strainer Filter PST-Y series,are Y-shaped, with one end for water flow and one end for precipitation of waste and impurities. Generally, they are installed at the inlet end of the pressure reducing valve, relief valve, level valve, etc., and used for removing impurities in water to protect normal operation of valves and devices. Water to be treated flows through the inlet, and impurities in water are deposited on stainless steel strainer. PST-Y filters can be repeatedly used after cleaning.

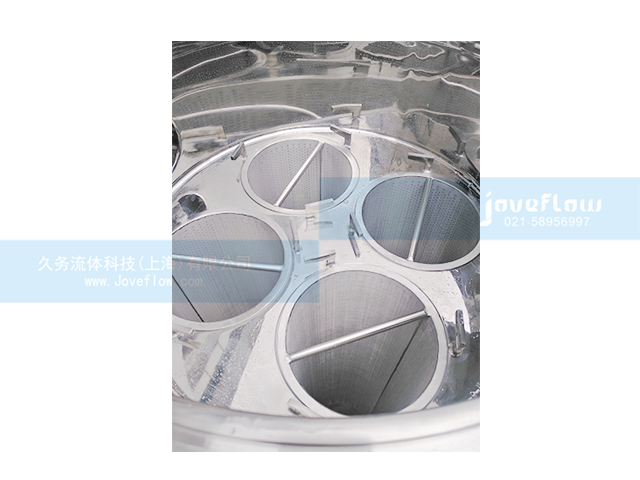

Strainer Filter PST-T series(hereinafter referred to as T-type basket filters), metal strainers are used as filter elements. The common accuracy is 1-8,000um. PST-T strainer filters can be repeatedly used after cleaning, reducing the operating costs. Metal sintered composite strainer, wedge strainer and perforated strainer with high durability and reliability can be applied in PST-T series.

Main Technical Parameters

■ Optional strainers: metal composite strainer, perforated strainer and wedge strainer

■ Optional accuracy (um): 1-8,000

■ Number of strainers: 1-24

■ Filtering area (m2) of strainer filter: 0.01-30

■ Casing material: 304, 316L and CS

■ Applicable viscosity (cp): 1-30,000

■ Design pressure (MPa): 0.6, 1.0, 1.6, 2.0, 2.5,4.0-10
