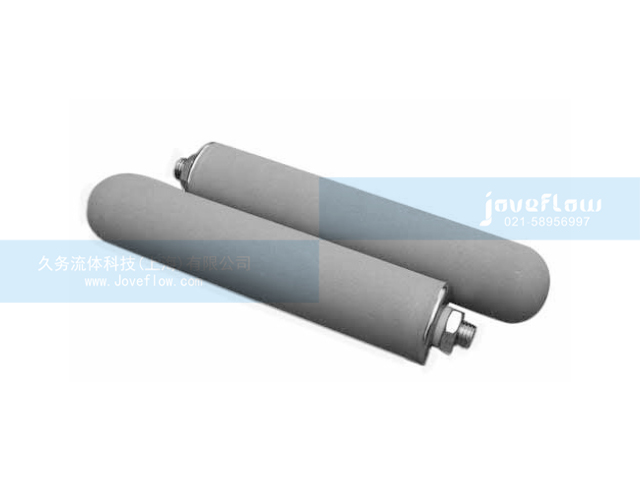

Sinter metal filter cartridge is manufactured by metal powder without adding adhesive. Formed under isostatic cool pressing and sintered with high temperature vacuum. The size and distribution of the pores can be controlled by the metal powder.

Properties

● Shape stability, components with high strength (sufficient pressure strength up to 50bar)

● Absolute filteration precision (0.5μm)

● Sufficient thermal stability up to 900℃

● High permeability and low Dp

● High corrosion resistance

● High mechanical strength

● Defined permeability and particle retention

● Excellent back flushing performance and cleaned easily

Forms of delivery

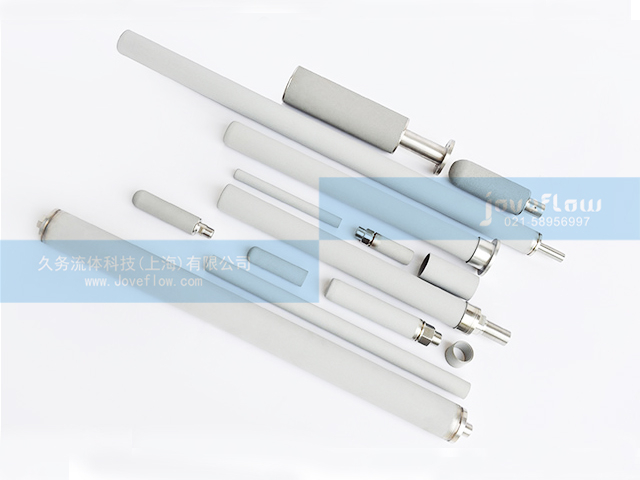

JFT can be made into various shape such as tube，gasket and so on. Accessories can be bonded to the porous parts by welding or directly during sintering process. Common specifications of outer diameter have φ20, 25, 30, 40, 50, 60, 70, 80, 90, 100, 140mm, length from 100 mm to1500mm, more than 1500mm can be welded, special specifications can be customized.

Alloy material

● Stainless steels (304L, 316L)

● Titanium and its alloys

● Nickel metal

● Monel® (Ni-Cu alloy)

● Inconel® (Ni-Cr-Fe alloy)

● Iron and aluminum alloy

● Hastelloy® B, C and X

● Special materials
