Filter Bag Series BAG

product introduce：Filter bag is the most important element in filtration process.

DetailsRangeOrder

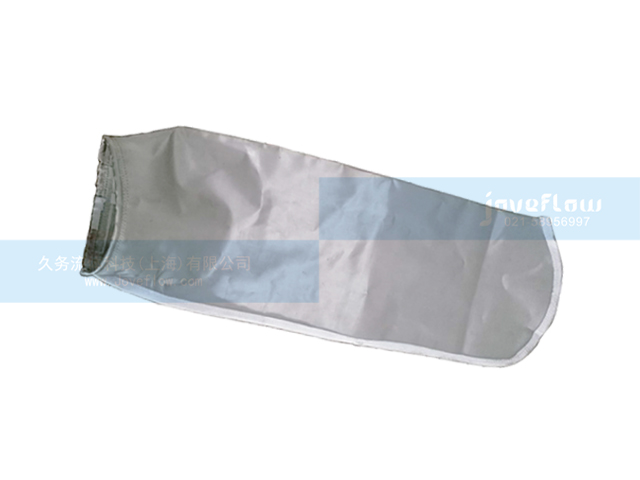

一、Stainless steel Filter Bag

Features
1. Specially designed for pressing solventless oil using the Rosin Technique press machine.
2. Material : SS 304 SS 304L.SS316,SS316L
3. Customized size availible.

1 #: 7" x 16" (17.78 cm x 40.64 cm)
2 #: 7" x 32" (17.78 cm x 81.28 cm)

3 #: 4" x 8.25" (10.16 cm x 20.96 cm)

4 #: 4" x 14" (10.16 cm x 35.56 cm)

5 #: 6 " x 22" (15.24 cm x 55.88 cm)

Customized size

4. Micron can be as you wish, 25micron, 50 micron, 100 micron, 120 micron, 160 micron,, 220 micron. or others
5. Packing: we can packing the screens with your logo sticker label.
6. Reusable.

二、Polypropylene (PP)/Polyester (PE)/Nylon (NMO) Filter Bag

Features

1. Can resist acid and alkali, organic solvent and good tensile strength;

2. Efficient oil absorption capacity;

3. Filtering and purifying fluid to remove impurities;

4.A wide range of filter material chemical compatibility;

5.Nylon (NMO) Filter Bag:reusable and easy to clean;

6.Total new material, increase extra 20% working life.

Product Description

Product Name	Liquid Filter Bags
Material Available	Nylon (NMO)	Polyester (PE)	Polypropylene (PP)
Maximum Operating Temperature	275-300° F (135-149° C)	275-325° F (135-162° C)	200-220° F (93-104° C)
Micron Rating (um)	25, 50, 100, 150, 200, 300, 400, 500, 600, or 25-2000um	0.5, 1, 3, 5, 10, 25, 50, 75, 100, 125, 150, 200, 250, 300	0.5, 1, 3, 5, 10, 25, 50, 75, 100,125, 150, 200, 250, 300
Size	1 #: 7" x 16" (17.78 cm x 40.64 cm) 2 #: 7" x 32" (17.78 cm x 81.28 cm) 3 #: 4" x 8.25" (10.16 cm x 20.96 cm) 4 #: 4" x 14" (10.16 cm x 35.56 cm) 5 #: 6 " x 22" (15.24 cm x 55.88 cm) Customized size
Filter Bag Area(m²) / Filter Bag Volume (Liter)	1#: 0.19 m² / 7.9 Liter 2#: 0.41 m² / 17.3 Liter 3#: 0.05 m² / 1.4 Liter 4#: 0.09 m² / 2.5 Liter 5#: 0.22 m² / 8.1 Liter
Collar Ring	Polypropylene ring/Polyester ring/Galvanized steel ring/ Stainless steel ring/Rope

The Chemical Resistance Of Liquid Filter Bag

Fiber Material	Polyester (PE)	Nylon (NMO)	Polypropylene (PP)
Abrasion Resistance	Very Good	Excellent	Very Good
Weakly Acid	Very Good	General	Excellent
Strongly Acid	Good	Poor	Excellent
Weakly Alkali	Good	Excellent	Excellent
Strongly Alkali	Poor	Excellent	Excellent
Solvent	Good	Good	General

Relevant

一、Stainless steel Filter Bag
It is food grade stainless steel cylinders that are excellent for rosining herbal concentrate. Cut to size fill with herb fold ends and press. These can be cut down into three inch tubes or to whatever size works best for you.The Tubes can be reused many times and won't leach any toxins or off flavors.
二、Polypropylene (PP)/Polyester (PE)/Nylon (NMO) Filter Bag
1. Electric paint coating line filtration.
2. Pre-discharge treatment circuit board production cycle water filtration.
3. Automobile production coating line metal casting pre-ultrafiltration protection filtration spray water filtration and oil filtration.
4. Solid-liquid separation in petrochemical light industrial food metallurgy electronics pharmaceutical etc.
5. Handling pre-cleaning electrophoretic paint spray rinse water circulating water etc. in the automotive industry.
6. Solvent purification treatment resin treatment and wastewater treatment in the paint industry.
